Fig. 1. Contour plots

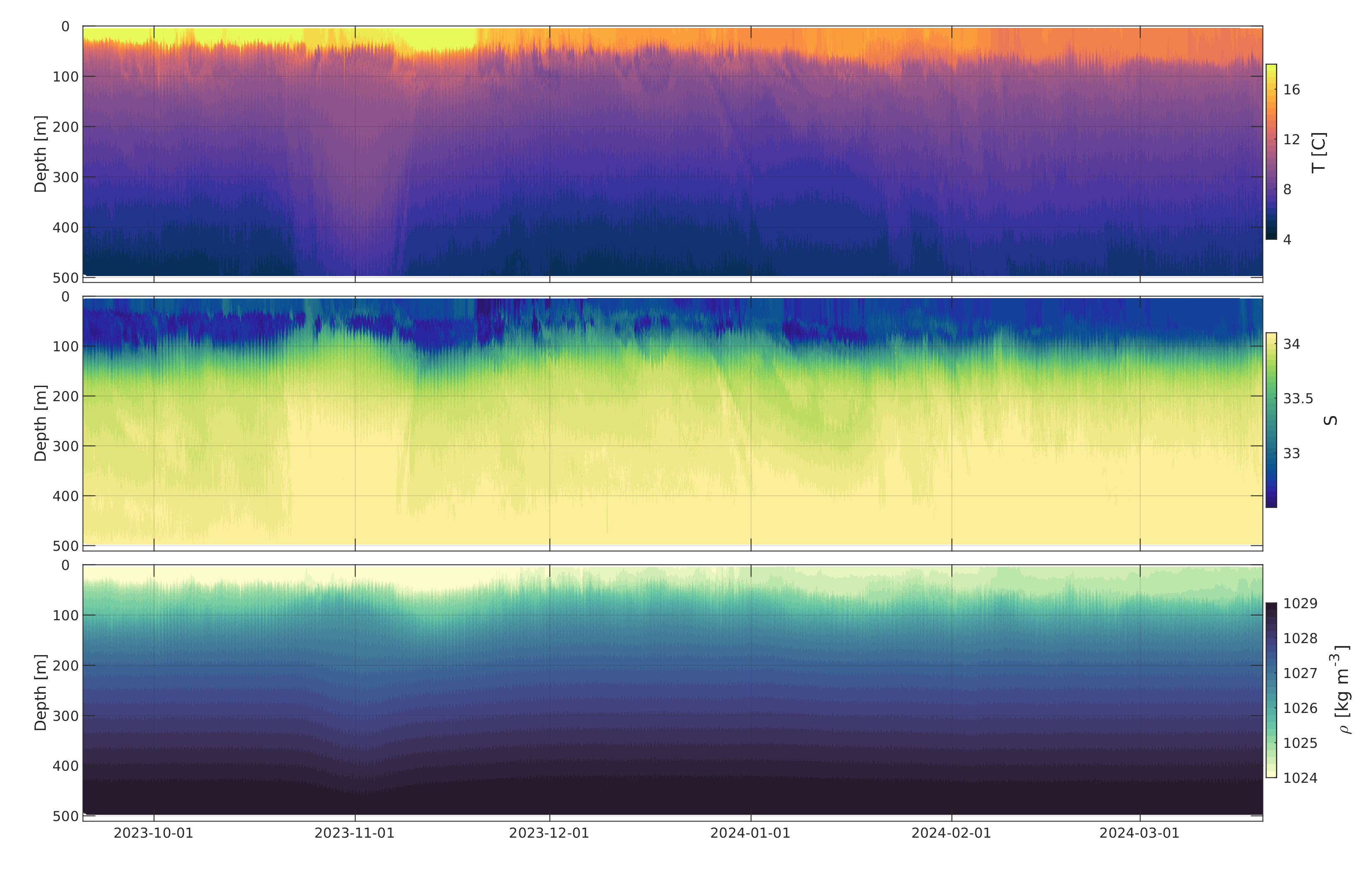

Contours of T, S, and density from the Wirewalker with RBR Concerto CTD, over the entire deployment, as a function of time (x-axis) and depth (y-axis). Only data from the upcasts are used, and outliers are removed prior to gridding.

Fig. 2. Time-series plots

Time series of T, S, p, and derived steric height from the Wirewalker with RBR Concerto CTD. By default the last 24 hr are displayed; to adjust the time period, select an interval at the top-left or click and drag to zoom. Internally-logged data are collected at 2 Hz; these are averaged to 0.5 Hz before being telemetered in near-real time. For these plots, the telemetered data are subsampled further to improve browser performance.

Fig. 3. T-S plot

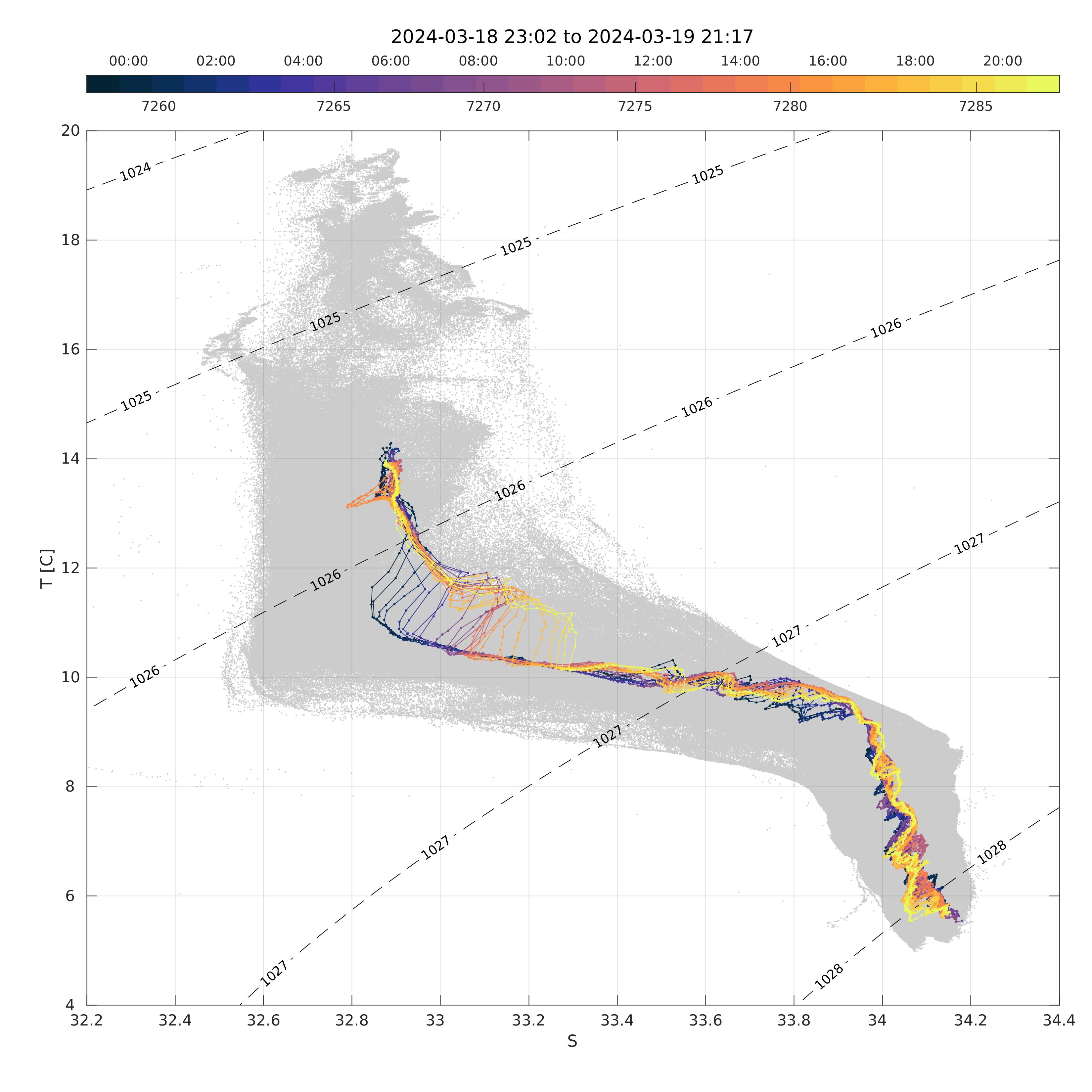

T-S plot from the Wirewalker with RBR Concerto CTD. Only data from the upcasts are shown. The full data set is plotted in gray; the most recent 24 hours are in color. Each profile is plotted as a uniquely colored dotted line. Colorbar labels show UTC time (upper) and profile number (lower).
